NM-B

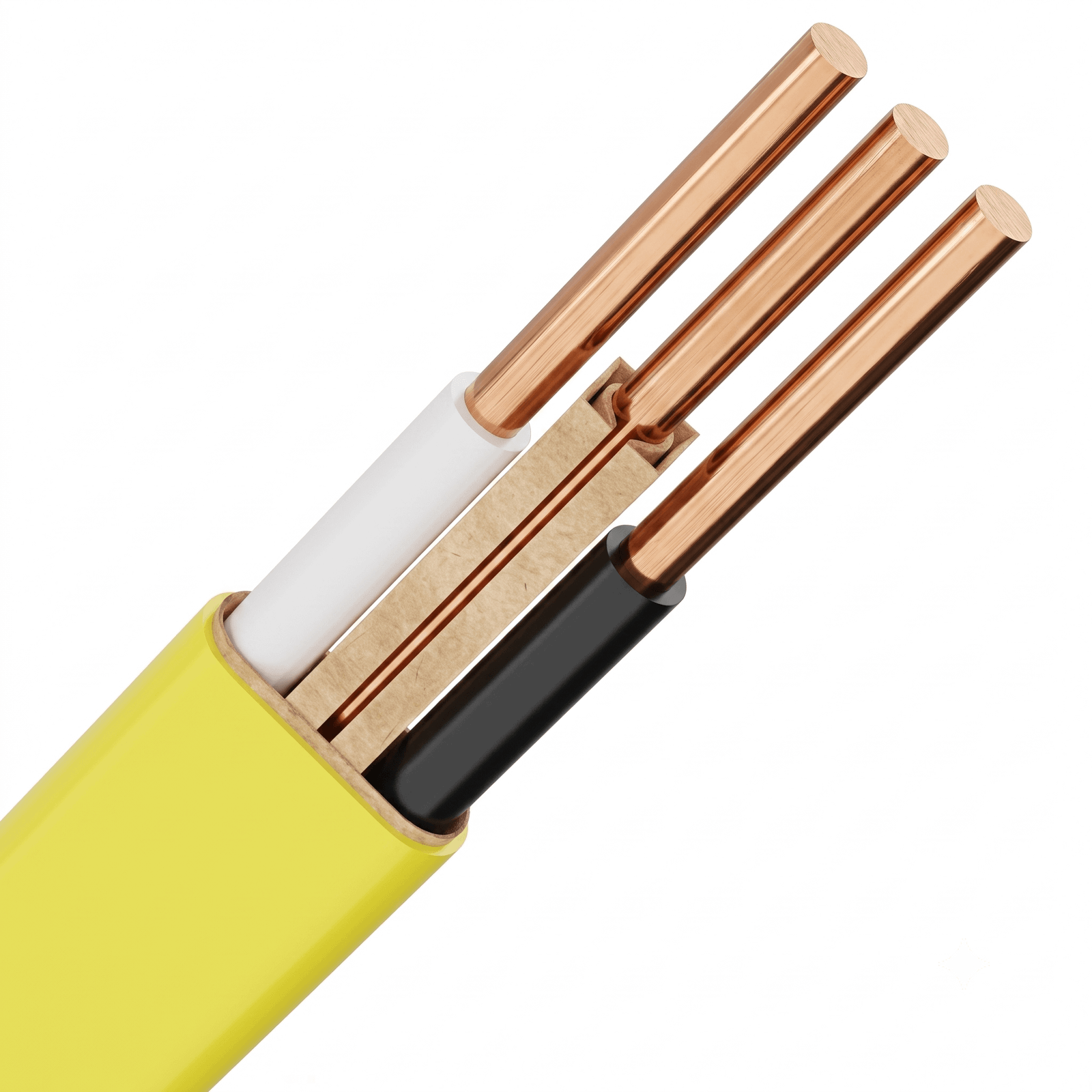

Quarles Wire type NM-B are primarily used in residential building applications as specified by the National Electrical Code. Type NM-B is available in sizes ranging from #14 – #6 and constructions of 2 conductors with a ground and 3 conductors with a ground. The individual conductors are solid soft annealed copper with a PVC insulation and nylon jacket. The ground wire is a bare ground. The entire assembly is wrapped with a paper layer and PVC is applied to the outer jacket. Quarles Wire’s NM-B is manufactured to the recognized industry standard with a friction-reducing additive to aid in the installation process.
- Applications
- Construction
- Conductor Identification
- Voltage Rating
- Temperature Ratings
- Min. Bending Radius
- Standards
- Listings and Certifications
- Packaging
- 600V
- ASTM B3
- ASTM B8
- RoHS Compliant
- UL-83
- UL-719
- UL-1581
- UL-2556
- E-519271
- NFPA 70 (NEC) Article 334
- Federal Specification A-A-56544
- ARRA 2009 Section 1605 “Buy American” Compliant
